01 / OVERVIEW

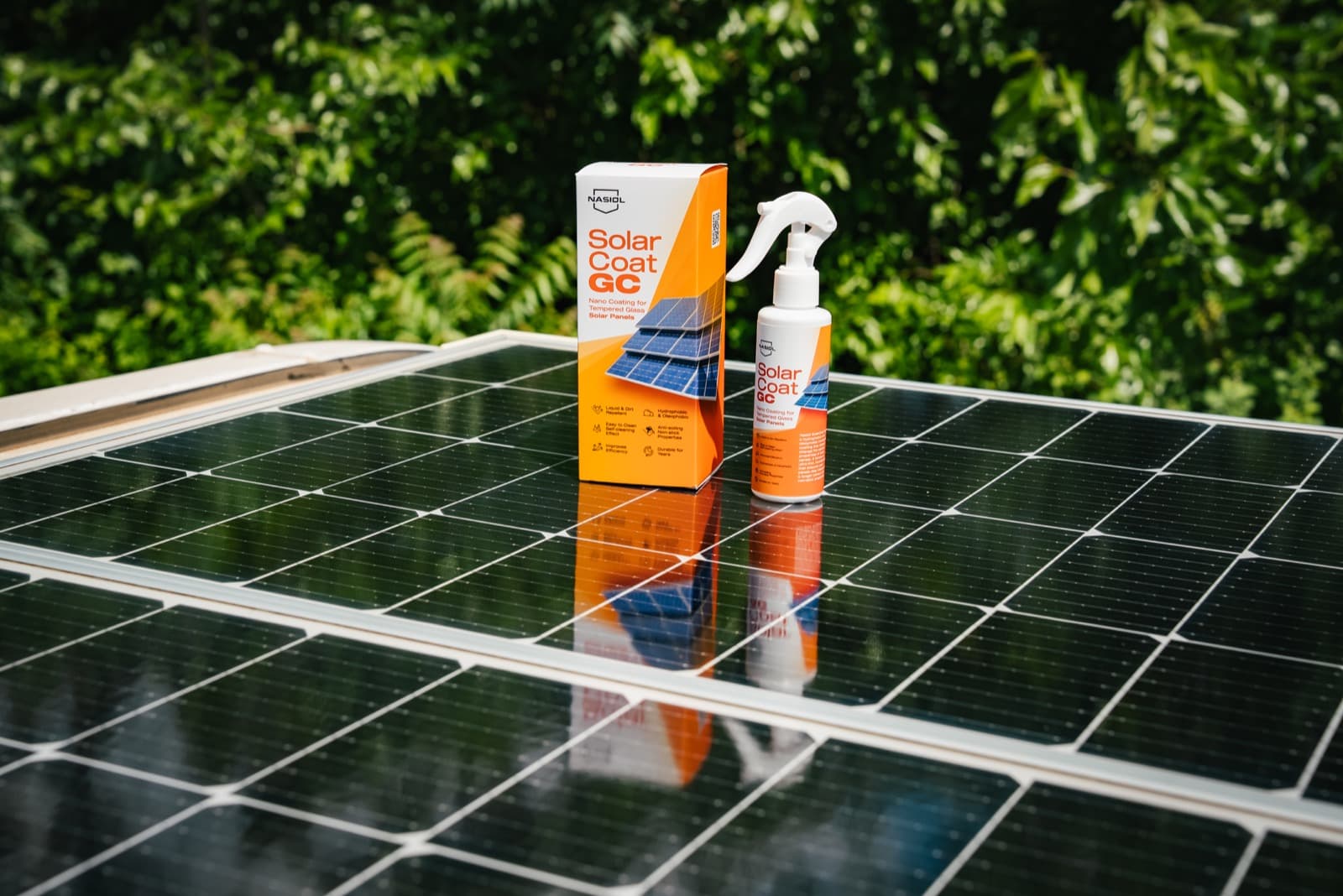

SolarCoat GC is a transparent hydrophobic and oleophobic coating that preserves panel optics while creating an ultra-thin non-stick layer for tempered-glass solar panels.
Application options
- Manual
- Pressurized spraying
Curing options
- Room temperature
- High temperature
Available packaging
150 mL · 500 mL · 1 L · 5 L · 20 L
Applicable surfaces
Tempered-glass photovoltaic solar panels.
02 / PERFORMANCE
What the surface gains.
Surface gains
- Transparent nano coating
- Hydrophobicity
- Oleophobicity
Benefits
- Liquid and dirt repellency
- Easy application and cleaning
- Self-cleaning effect
- Anti-soiling
- Non-stick performance
Benefit outcomes
- Improves PV efficiency
- Extends panel lifespan
- Cuts cleaning and maintenance cost
- Keeps the original appearance
03 / TECHNICAL DATA
Technical specifications.
| Property | SolarCoat GC |
|---|---|
| Packaging | 150-500 mL; 1-5-30 L |
| Appearance | Colorless liquid |
| Chemical resistance | 13>pH>1 |
| Dry film thickness | 100-150 nm |
| Consumption per unit area (manual) | 5-6 mL/m² |
| Density @23°C | 0.81 g/cm³ |
| pH value | 1.9-2.2 |
| Transparency | 99.9% |
| Light refractive index | 1.625 (glass) |
| Application temperature | 5°C-30°C / 41°F-86°F (≤50% RH) |
| Temperature durability | 250°C / 482°F |
| Water contact angle | 107° @10 µL |
| Water contact angle after 3000 wet scrubs | 103° @10 µL |
| Water sliding angle | 15° @60 µL |
| Oil contact angle (n-hexadecane) | 85° ±3 @10 µL |
| REACH compliance | Yes |
| Durability | 3 years |
| Shelf life | 24 months |
04 / PRODUCTS
The complete system.
READY TO SPECIFY SOLARCOAT GC?
Match the coating
to the application.
Share the substrate, environment and required performance. We’ll help confirm the right formulation and application process.
